Bentonite double shfat mixing machine for bentonite production plant

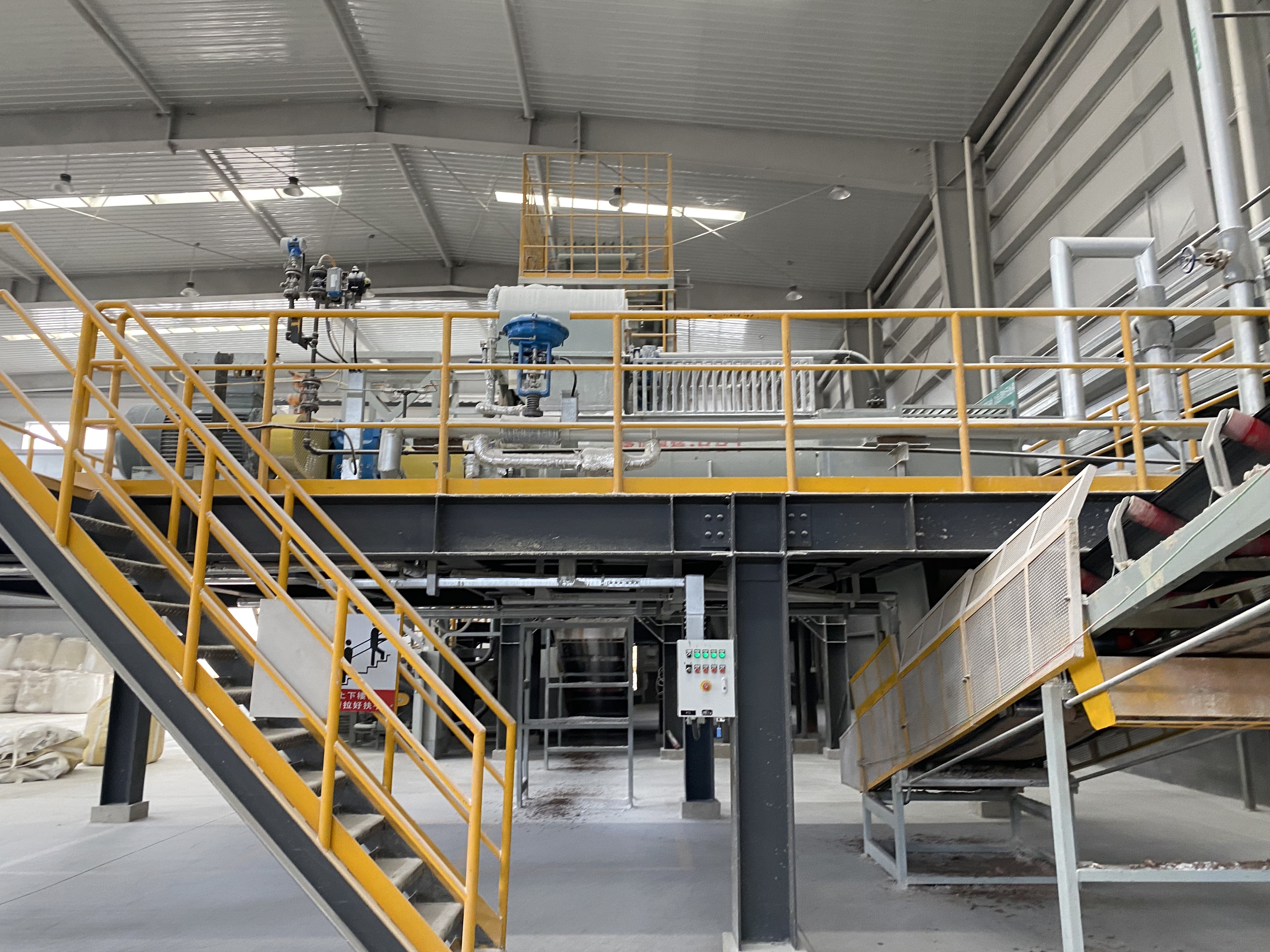

Bentonite plant double shaft mixer in automatic bentonite producing site
Bentonite production equipment mixer for bentonite producing
Double Shaft Clay Mixer for Brick Making Machine Mixing Tank Mixing Series
Double shafts mixer is suitable for continuous mixing of mixed fertilizer powder,usually used after automatic batching equipment.

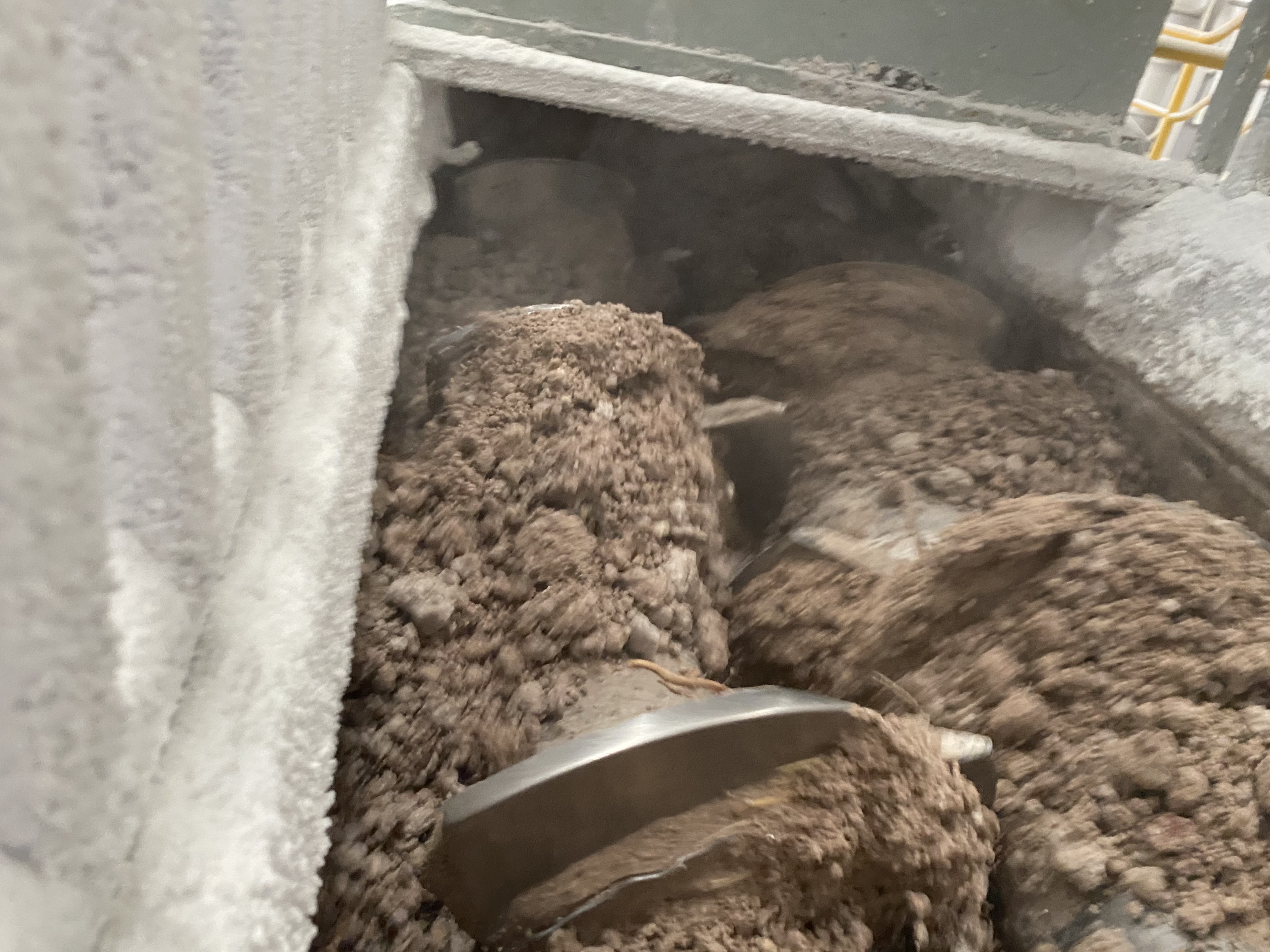

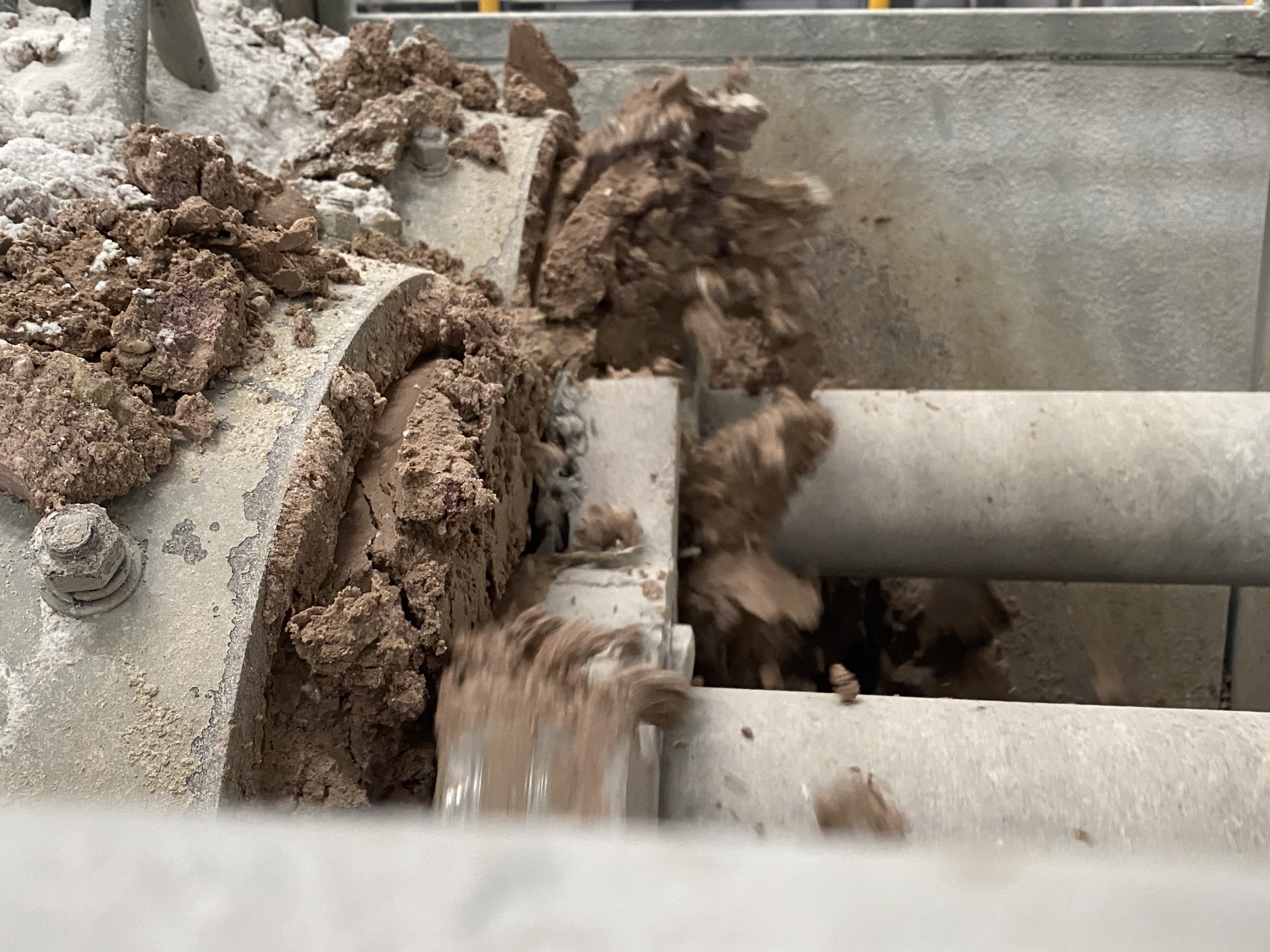

The working principle is that the materials go into the mixing tank,then through a pair of screw shafts with opposite rotating,they are stirred uniform,and enter the next granulation process.

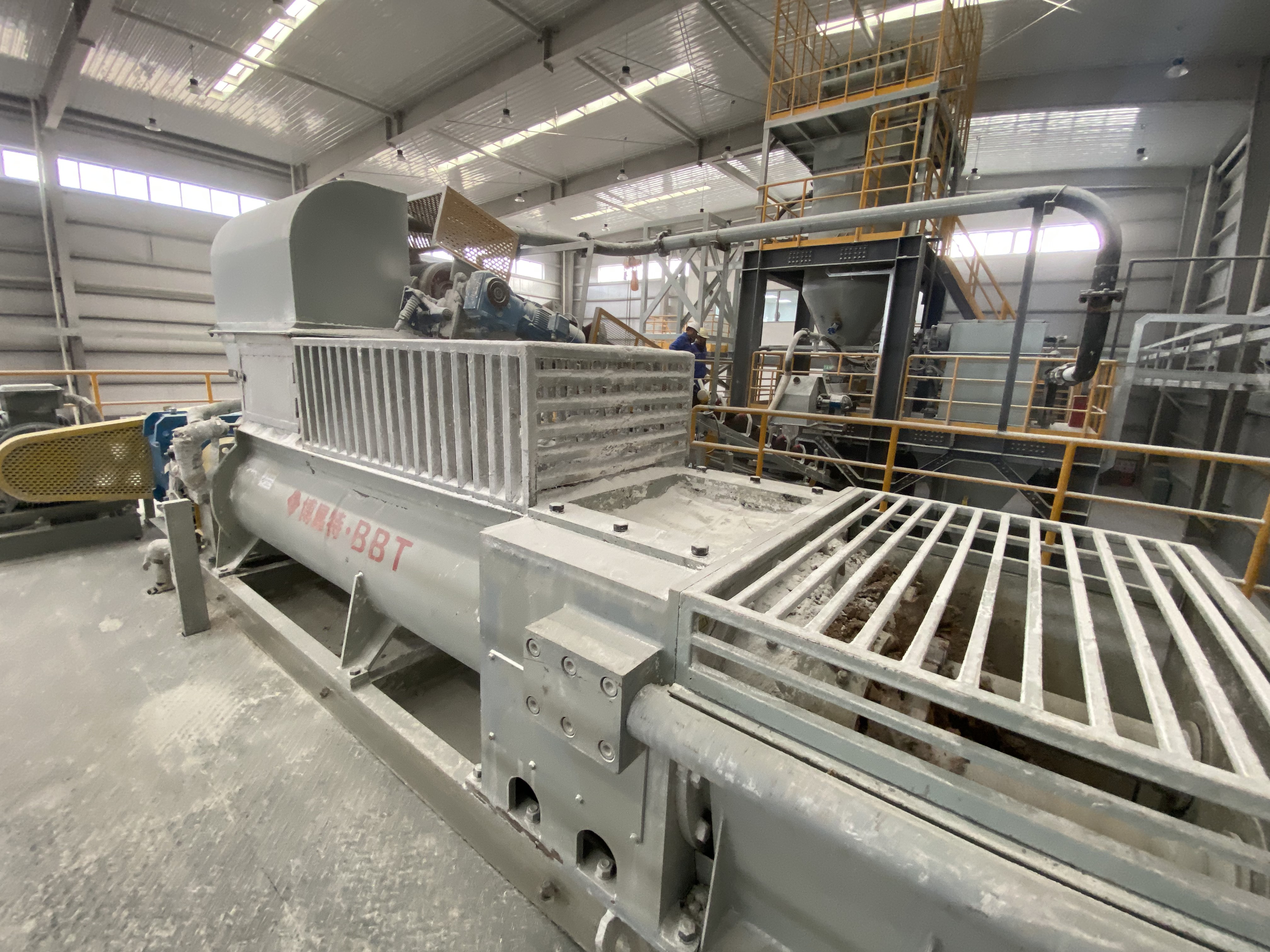

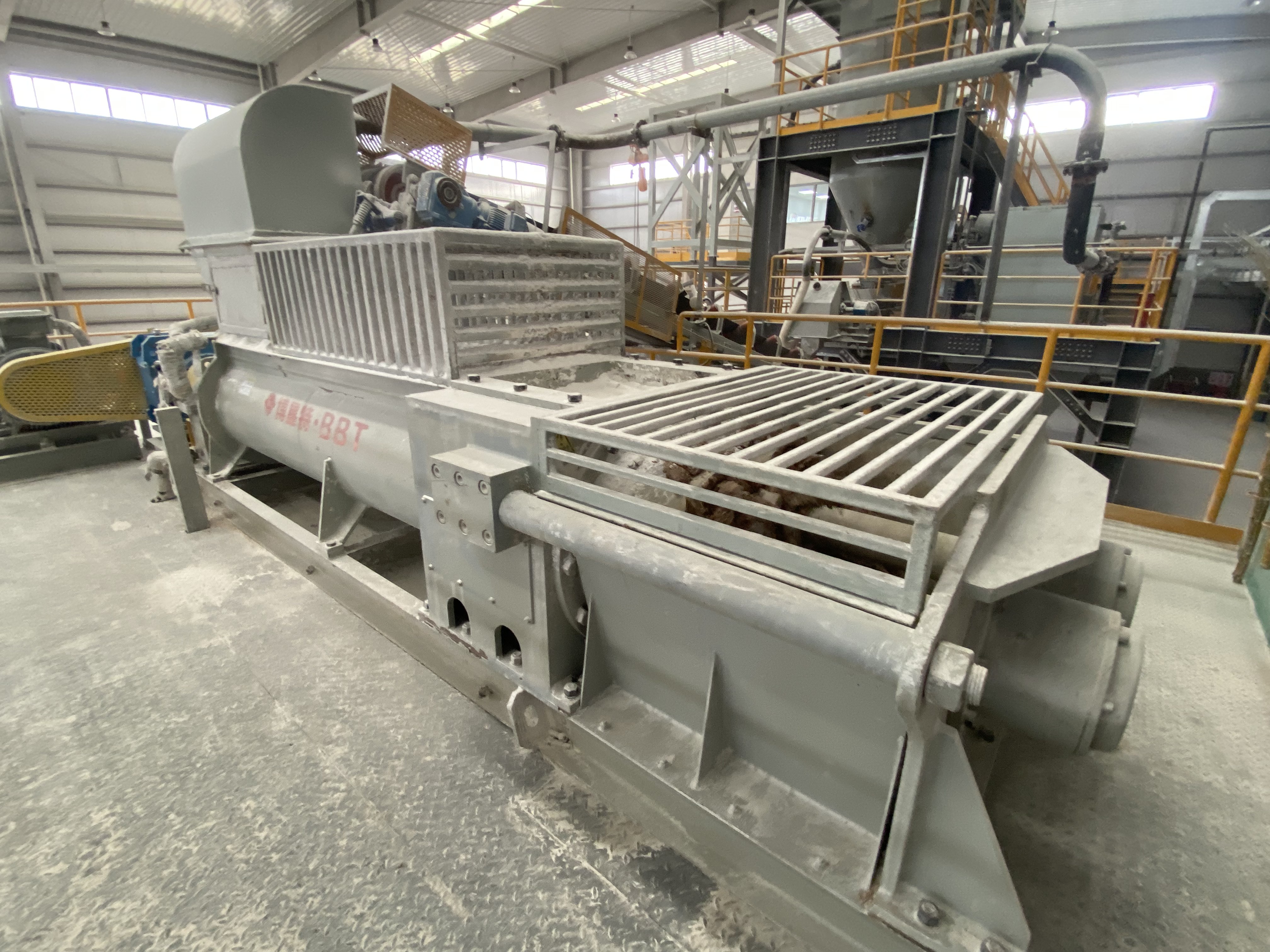

Double shaft mixer machinery
1.High efficiency, high wear - resistant alloy.It has high stirring efficiency and little floor space.The spiral blade is made of special alloy with high wear resistance.
2.Low noise.the double shafts mixer adopts reducer drive, steady rotation and low noise.
3.Reasonable structure.In order to improve the mixing uniformity; we use new rotor structure, the rotor and mixing chamber are so close to the minimum gap which can be adjusted to zero mm,
4.Smooth operation.The sealing between the joints is tight and the operation is smooth.
Bentonite mixing machine technical parameters:
| Specification Model | Capacity (m³/hr) | Power Requirement (kw) | Rotate Speed(t/m) | Exterior Dimension (mm) |
| MDE320B | 22-26 | Y6-45 | 35 | 5170*1470*870 |
| MDE360B | 23-31 | Y6-55 | 35 | 5480*1520*930 |
| MDE400B | 28-41 | Y6-75 | 35 | 5500*1520*980 |
| MDE500B | 33-47 | Y6-110 | 35 | 5800*1600*1200 |
| MDE410A | 37-41 | Y6-75 | 35 | 5170*1470*870 |
