30kw Roller Mobile Jaw Rock Crusher For Clay Brick Making

Brand Name : BBT

Model Number : PEX

Certification : ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Be negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 set per month

Delivery Time : 10-15days

Packaging Details : jaw crusher machine by common packaging

Item : clay brick making machine crushing jaw rock crusher mobile jaw crusher Jaw crusher for sale roller crusher machinery

Capacity : 14~36m3/hr

Power : 30kw

Feeding Granularity : 500mm

Exterior Dimension : 1650*1748*1520

Raw material : clay, mud, soil,shale

Contact Now

BBT full automatic clay brick making line crusher machine clay brick making machine crushing jaw rock crusher mobile jaw crusher Jaw crusher for sale roller crusher machinery

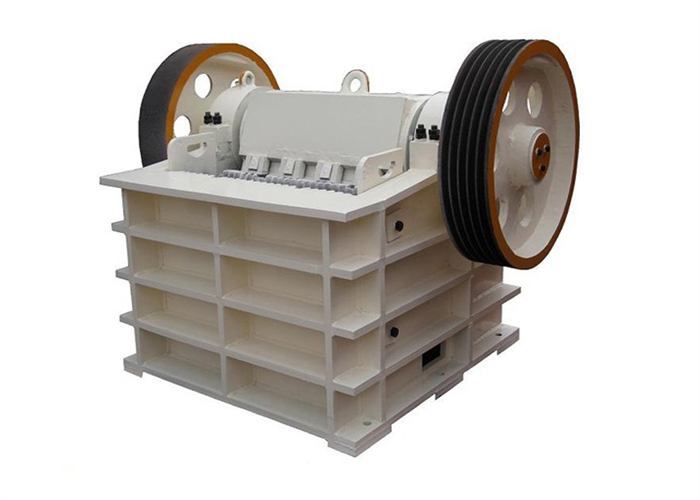

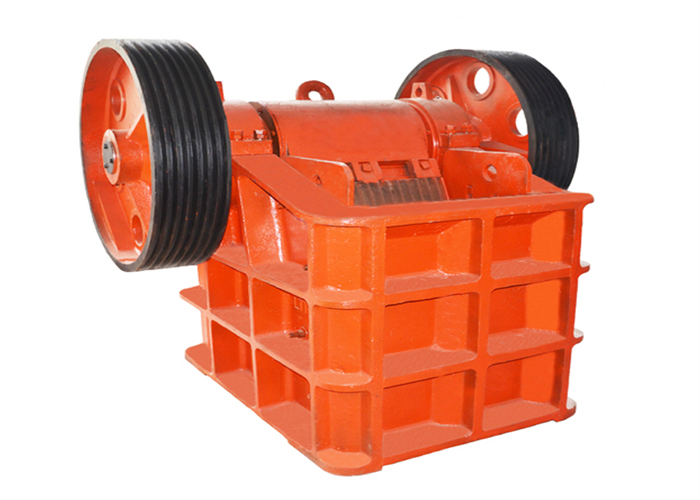

Jaw crusher machine

30kw Roller Mobile Jaw Rock Crusher For Clay Brick Making

Jaw crusher application:

HC Jaw Crusher is applicable for primary and middle crushing. The technical parameters of biggest materials cannot be more than the technical parameters listed in the table. It is widely used in the departments of mine, smeltery, construction, road, railway, irrigation works and chemical industries, etc. The materials can be various medium hard and hard ore

Jaw crusher Structures and working principle:

This jaw crusher working theory

The motor drives belt and belt wheel, the eccentric shaft causes the movable jaw to move down and up, forward and backward, the angle between toggle plate and movable jaw becomes bigger when the movable jaw moves up, so that the movable jaw moves toward the fixed jaw, and the materials are pressed, crushed, or cut, as a result, the aim of crushing is accomplished.

clay brick making machine crushing jaw rock crusher mobile jaw crusher Jaw crusher for sale roller crusher machinery

30kw Roller Mobile Jaw Rock Crusher For Clay Brick Making

Jaw crusher machine of technical parameters:

Specification Model	Capacity (t/hr)	Power Requirement (kw)	Feeding Granularity(mm)	Exterior Dimension (mm)
PEX400A	14-36	Y6-30	425	165017481520
PEX500A	23-62	Y6-55	500	160019502000
